Quick Details

  • Products Status: Stock
  • Screen Size: 17"
  • Type: IntelliTouch
  • Interface Type: USB, RS232
  • Resolution: 1280 x 1024, 1280*1024
  • Brand Name: Keetouch
  • Model Number: KOT-0170US-SA3BCW
  • Place of Origin: Guangdong, China (Mainland)
  • Product name: open frame lcd monitor
  • LCD Type: 17"Active matrix TFT-LCD
  • Viewing Angle: 85°/85°/80°/80°
  • Contrast Ratio: 800:1
  • Video Input: VGA and DVI
  • Mount Interface: Mount bracket, horizontal or vertical(VESA hole)
  • Touch screen Type: Keetouch 17" SAW 3/4/6mm compact touch sensor
  • Touch System Interface: Having USB and Serial(RS232) interface
  • Regular Warranty: 5 years for SAW Sensor; 3 years for controller; 1 year for LCD

Packaging & Delivery

Packaging Details 1pcs per carton. open frame lcd monitor
Delivery Time Shipped in 5 days after payment

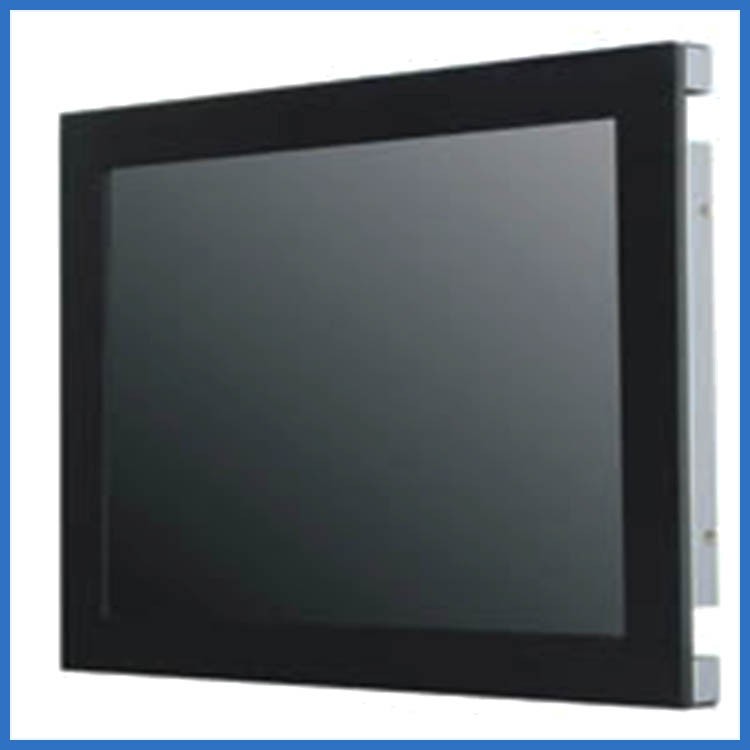

KeeTouch supply 17" SAW type open frame touch lcd monitor for KIOSK



Product Description



Model No.

KOT-0170US-SA3BCW;KOT-0170US-SA4BCW; KOT-0170US-SA6BCW

Series

OT,Water-proof and Compact

LCD Type

17"Active matrix TFT-LCD

Active Area

13.3"(338mm)×10.6"(270mm)

Monitor Dimensions

Width: 368mm

Width with brackets:389.4 mm
Height: 306mm

Height with brackets: 327.4mm
Depth: 48/49/51mm for 3/4/6mm touchscreen glass

Suggested Resolution

1280×1024

Support Colors

16.7M

Brightness(Typ.)

Pure LCD Panel

300cd/m2

With SAW Glass Sensor

275cd/m2

Response Time(Typ.)

5ms

Viewing Angle

(Typ.at CR>10))

Horizontal(left/right)

80°/80°

Vertical(up/down)

80°/80°

Contrast Ratio(Typ.)

800:1

Video Input

Dual Analog RGB and DVI video format

Frequency(H/V)

30~80KHz / 60~75Hz

Power Supply

Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max

Environment

Operating Temp.

0~50°C

Storage Temp.

-20~60°C

Operating RH:

20%~80%

Storage RH:

10%~90%

MTBF

50,000 Hours

LCD Back light Life(Typ.)

50,000 Hours

Weight(N.W/G.W)

5Kg / 7.2Kg (Approx.)

Power Consumption

40W Max.

Mount Interface

1)VESA 75mm and 100mm

2)Mount bracket, horizontal or vertical

(Standard mount brackets are supplied)

OSD Control

Buttons

AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

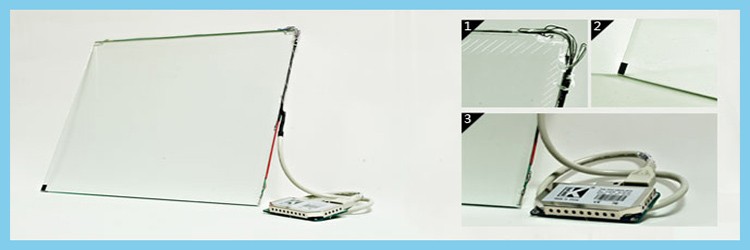

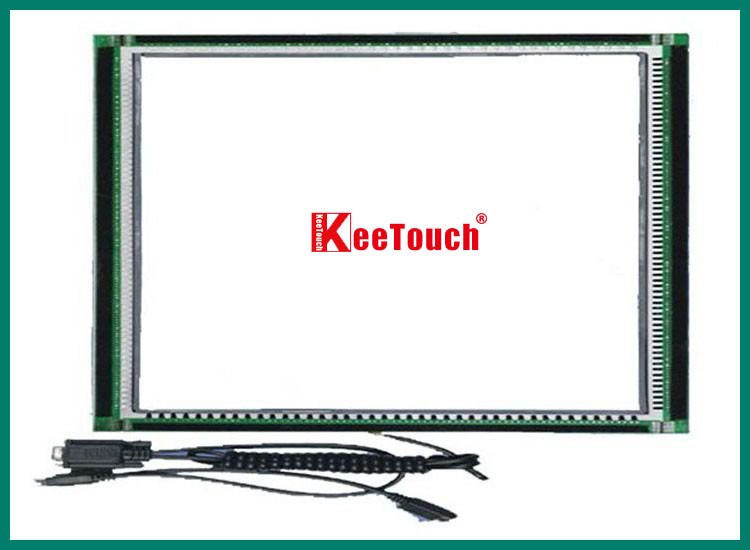

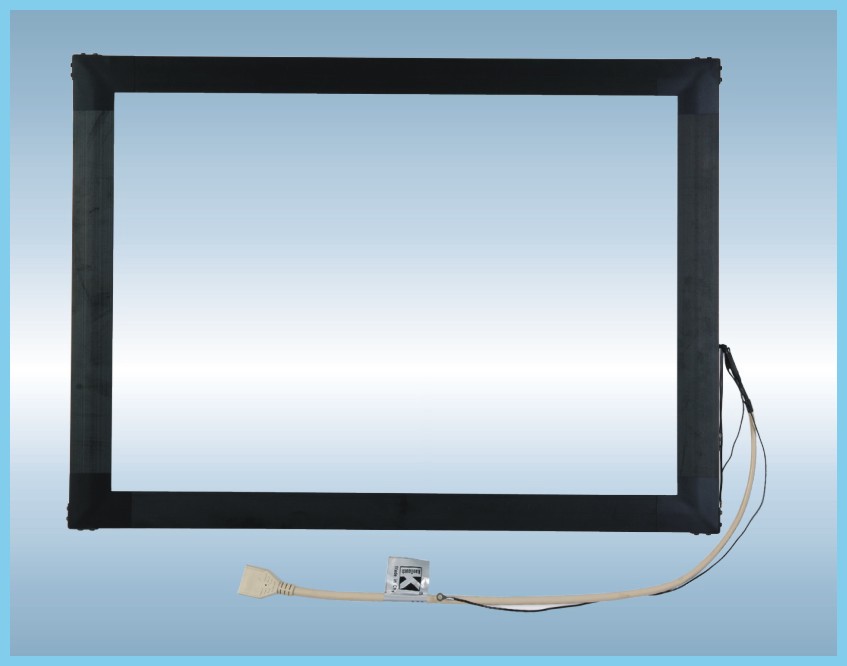

Touch screen Type

Keetouch 17" SAW 3/4/6mm compact touch sensor

Touch System Interface

Having USB and Serial(RS232) interface

Touch Response time

USB/Serial: 8.4/10.4ms

Agency Approval

ETL,FCC,CE,RoHS

Regular Warranty

5 years for SAW Sensor; 3 years for controller; 1 year for LCD

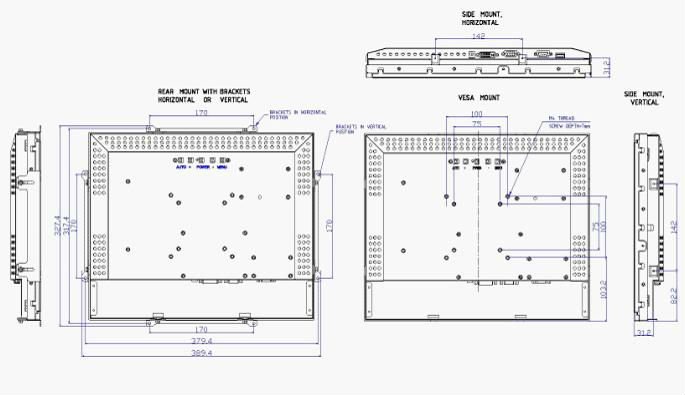

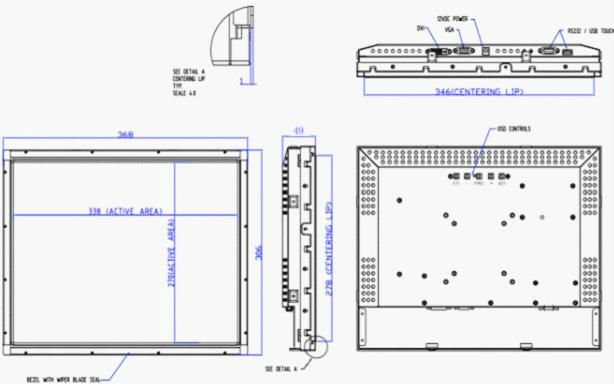

17 inch LCD monitor Mechanical Dimension:

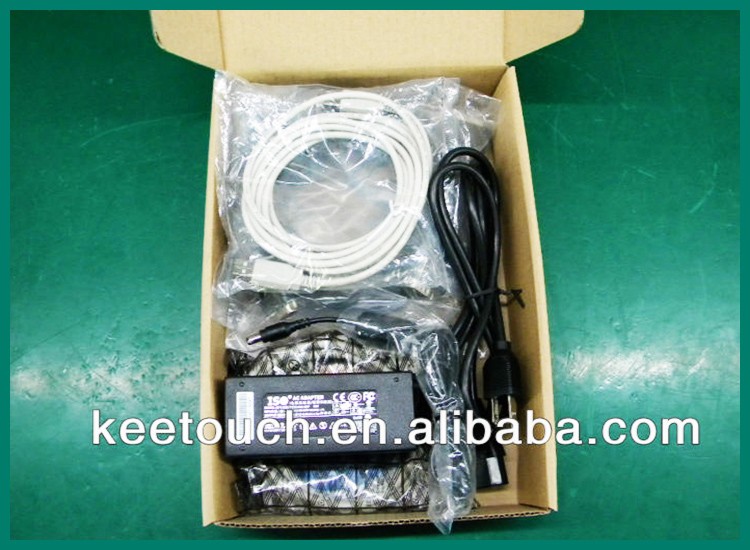

Accessories:

 Power Cable Power Supply Brick,Touch/Vid,eo/DVI Cables,L-brackets:Four standard L-brackets are included.

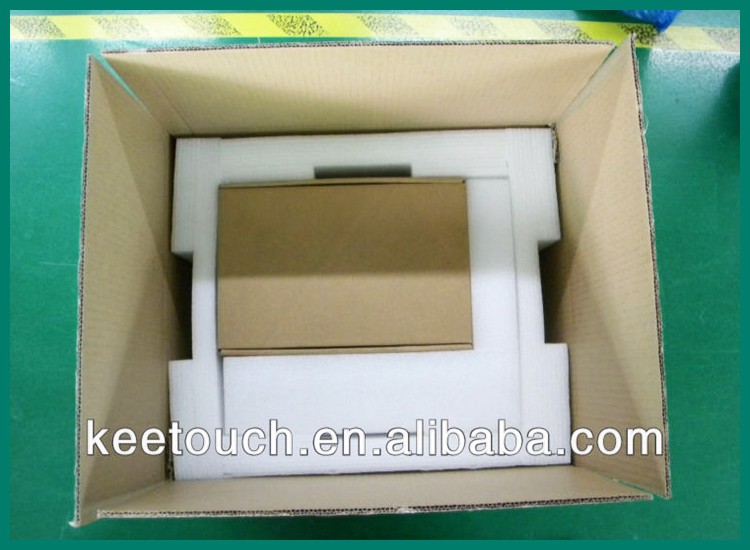

Package:

Dimension:56x49x20cm (1pcs/carton) or 53x25x46cm (2pcs/carton)



Sample Shipping By DHL,UPS,Fedex,TNT

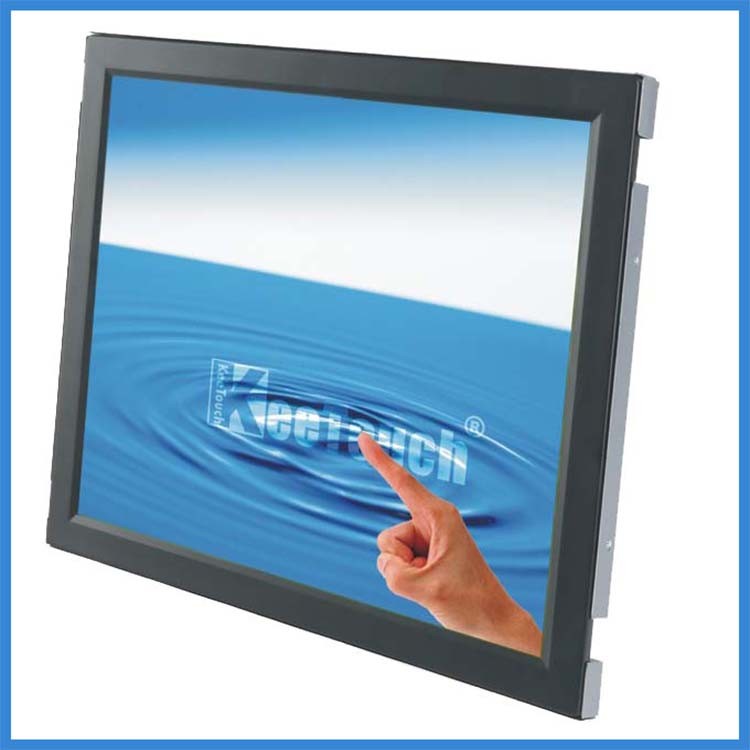

Product Pictures

Product Pictures









Our Services
Our Services



1. Your inquiry related to our products or prices will be replied in 24hours.

2. Well-trained and experienced staffs to answer all your enquires influent English.

3. OEM & ODM are welcomed, OEM brand is available.

4. Distributor ship is offered for your unique design and some our current models.

5. Protection of your sales area, ideas of design and all your private information.



Company Information



  KeeTouch Co., Ltd., as the leading provider of touch screen products and touch solutions, is specialized in R&D, manufacturing, marketing and selling touch screen, touch monitor, touch computer and also other value-added touch screen products.

  KeeTouch has established perfect quality management system after integrating advanced international quality management model and the introduction of many quality control methods.

   KeeTouch products were certificated by CCC, UL, ETL, FCC, CE, CB and RoHS. Furthermore, we have already built up and operated in accordance with ISO9001 quality system, ISO14001 environment management system and OC080000 limit harmful material management system.







FAQ



1. All the Products are produced by KeeTouch Electronics Co., Ltd?



Answer: Yes, we are the manufactuer and professional producing and assembling for many years, all of the resistive,infrared,SAW and capacitive type we can offer you .



2. Lots of Customer say that They can buy the Touch Monitor and Touch Screen with Brand " KeeTouch" abroad , Is that True?



Answer: Yes, we have the Brand " KeeTouch" for all the products we are selling.

We are selling our products to the worldwide and have a great relationship with many agent who have cooperated with us.



Besides, we have a Branch Office in Germany ,there we have a big product warehouse .So we can send the products easily .
